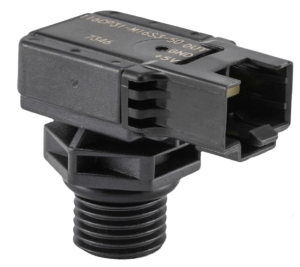

Utilizing the industry leading ceramic capacitive technology, the 116CP is housed in a small and innovative plastic package ideal for boilers, pumps, and other light industrial applications. The 116CP is offered in a wide range of configurations including various pressure ports, electrical outputs and pressure ranges from 0-4 to 0-16 bar.

SPECIFICATION

1. Supply Voltage - 5VDC (ratiometric) or 8-30VDC (voltage regulated)
2. Output Voltage - Commonly 0.5 to 3.5V or 0.5 to 4.5V
3. Supply Current - 8.0mA
4. Output current - 5.0mA (max)
5. Output Load - 10kOhm pull down
6. Output Response Time - <10ms
7. Overvoltage Protection - ±40V
8. Reverse Voltage - -14V
9. Short Circuit Protection - Up to 40V
10. Multiple port & Connector options
11. High accuracy: +/-1.5%VS
12. Small & compact size
13. 100% automated calibration
14. REACH/RoHS/CE compliant
15. Pressure Ranges - 0-4 to 0-16bar (0-60 to 0-232 PSI)

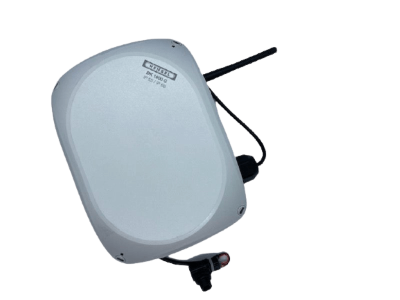

The LT series I/O Modules are Long Range LoRa I/O Controller. It contains different I/O Interfaces such as: analog current Input, analog voltage input, relay output, digital input and digital output etc. The LT I/O Modules are designed to simplify the installation of I/O monitoring. The LT I/O Controllers allows the user to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.
